Guide to Natural Gas Processing Plants

Natural gas processing plants convert raw natural gas into cleaner and more suitable gas streams for transportation, industrial use, and energy applications. The process also allows valuable natural gas liquids and other components to be recovered.

What Is a Natural Gas Processing Plant?

A natural gas processing plant is an industrial facility that treats raw natural gas and separates different components from the gas stream. Raw natural gas is primarily methane, but it can also contain ethane, propane, butanes, pentanes, water vapor, carbon dioxide, hydrogen sulfide, nitrogen, condensate, and other materials.

The exact configuration of a plant depends on the composition of the incoming gas and the specifications of the desired products. Some facilities focus mainly on gas purification and dehydration, while others also recover natural gas liquids through advanced separation and fractionation systems.

A typical gas plant processmay include inlet separation, acid gas removal, dehydration, NGL recovery, and fractionation.

Main Stages of the Gas Plant Process

A natural gas processing facility normally combines several process units. Vista Projects identifies five major stages: removal of oil and condensate, removal of sulfur and carbon dioxide, dehydration, NGL extraction, and NGL fractionation.

The first stage normally removes free liquids and condensate from the incoming gas. The gas then passes through treatment units to remove selected contaminants and water. After dehydration, the plant can recover valuable hydrocarbons such as ethane, propane, butane, and pentanes.

Depending on the product requirements, additional units may be included for nitrogen removal, mercury removal, compression, gas cooling, or further hydrocarbon separation.

Inlet Separation and Condensate Removal

Raw natural gas can contain free water, hydrocarbon condensate, and other liquid materials when it arrives at the processing facility. Inlet separation is therefore an important first step.

A separator vessel allows the gas and liquids to move into different phases. Due to differences in density, heavier liquids can collect in the lower part of the vessel while the gas continues through the upper outlet.

Condensate recovered during this stage can be collected for additional processing or storage. Water can also be removed from the gas stream before the gas enters downstream treatment equipment.

For an oil gas plant, effective inlet separation provides a controlled feed for subsequent gas treatment and hydrocarbon recovery units.

Acid Gas Removal

Natural gas can contain carbon dioxide and hydrogen sulfide, commonly referred to as acid gases. These components may be removed before the gas moves to downstream processing units.

Amine absorption is one commonly used method. In an amine system, the gas contacts an amine solution in an absorber. The solution absorbs selected acid gas components, while the treated gas leaves the absorber.

The loaded amine is then regenerated so that the solvent can be reused. Other technologies can also be selected according to the gas composition and process requirements, including membranes and cryogenic separation for certain applications.

This treatment stage is an important part of many natural gas processing configurations because it prepares the gas for dehydration, NGL recovery, or other downstream processes.

Natural Gas Dehydration

Water removal is another essential part of the gas plant process. Natural gas leaving the initial separation and treatment stages can still contain water vapor.

Two common dehydration approaches are glycol dehydration and solid-desiccant dehydration. Glycol dehydration uses a liquid desiccant, commonly triethylene glycol, to absorb water from the gas.

Solid-desiccant systems use materials such as molecular sieves or other adsorbents to capture water molecules. These systems are particularly important when the gas will subsequently enter a cryogenic process because very low water content is needed for cold separation systems.

Proper dehydration allows the gas to meet downstream process specifications and supports stable operation of cold-section equipment.

What Is Cryogenic Gas Processing?

Cryogenic gas processinguses very low temperatures to separate components of natural gas according to their different physical properties and condensation characteristics.

A cryogenic natural gas plantmay be used for NGL recovery, particularly when the process requires high recovery of ethane and other valuable hydrocarbon components. The gas is cooled through heat exchangers and other refrigeration or expansion equipment, causing selected hydrocarbons to condense.

The resulting liquid and gas phases can then be separated. Methane generally remains in the gas phase, while heavier hydrocarbons can be recovered as liquids.

Cryogenic processing can therefore provide an efficient route for separating methane from ethane, propane, butanes, and heavier hydrocarbons. Linde describes cryogenic processes as a method for recovering NGL, LPG, condensate, and individual components such as methane, ethane, propane, and butane.

How Does a Cryogenic Gas Plant Work?

A typical cryogenic gas plantbegins with treated and dehydrated natural gas. Before entering the cold section, water and selected contaminants are removed so that the gas is suitable for low-temperature processing.

The dry gas then passes through heat exchangers where its temperature is progressively reduced. Depending on the process design, a turbo-expander or another cooling method may be used to produce the required temperature conditions.

As the gas cools, heavier hydrocarbons condense into a liquid phase. A separator can then divide the liquid and gas streams.

The recovered liquids may subsequently enter a fractionation section, while methane-rich gas can continue as residue gas.

This integrated arrangement is commonly described as a cryo gas plantbecause cryogenic cooling is an important part of the NGL recovery process.

NGL Recovery and Fractionation

Natural gas liquids are valuable components recovered from natural gas. The main NGL components include ethane, propane, butanes, and pentanes plus.

NGL recovery and fractionation are normally treated as separate stages. First, the NGL-rich liquid is separated from the gas stream. The liquid can then enter fractionation columns where individual components are separated according to their boiling points.

A typical fractionation train may include a de-ethanizer, de-propanizer, and de-butanizer. These columns separate ethane, propane, and butane, while heavier hydrocarbons remain in the bottom product.

This allows a natural gas processing plant to produce several marketable hydrocarbon streams instead of treating methane as the only valuable product.

Important Equipment in a Gas Processing Unit

A gas processing unitis normally made up of multiple pieces of interconnected process equipment. The exact equipment list depends on the plant configuration and feed composition.

Common equipment includes inlet separators, gas-liquid separators, heat exchangers, absorbers, regeneration systems, dehydration units, molecular sieve vessels, compressors, cryogenic exchangers, turbo-expanders, fractionation columns, condensate vessels, and storage systems.

Separators are particularly important because they divide gas and liquid phases at different stages of the process. Heat exchangers are widely used for temperature control, while absorption and adsorption equipment supports the removal of selected components.

In a cryogenic system, the cold section works together with upstream dehydration and gas treatment equipment to create the required feed conditions for low-temperature separation.

Choosing the Right Natural Gas Processing Configuration

The design of a natural gas processing plant depends on several factors, including feed gas composition, flow rate, required product specifications, NGL recovery objectives, and downstream applications.

A relatively simple facility may require inlet separation and dehydration, while a larger NGL recovery facility can incorporate acid gas removal, molecular sieve dehydration, cryogenic separation, and fractionation.

For facilities processing gas associated with crude oil production, an oil gas plantmay also include condensate separation and additional liquid handling systems.

The process should therefore be developed around the composition of the feed gas rather than using one standard configuration for every application. Research on conventional natural gas processing confirms that units such as acid gas removal, dehydration, NGL recovery, nitrogen rejection, compression, and liquefaction may be included according to feed composition and product requirements.

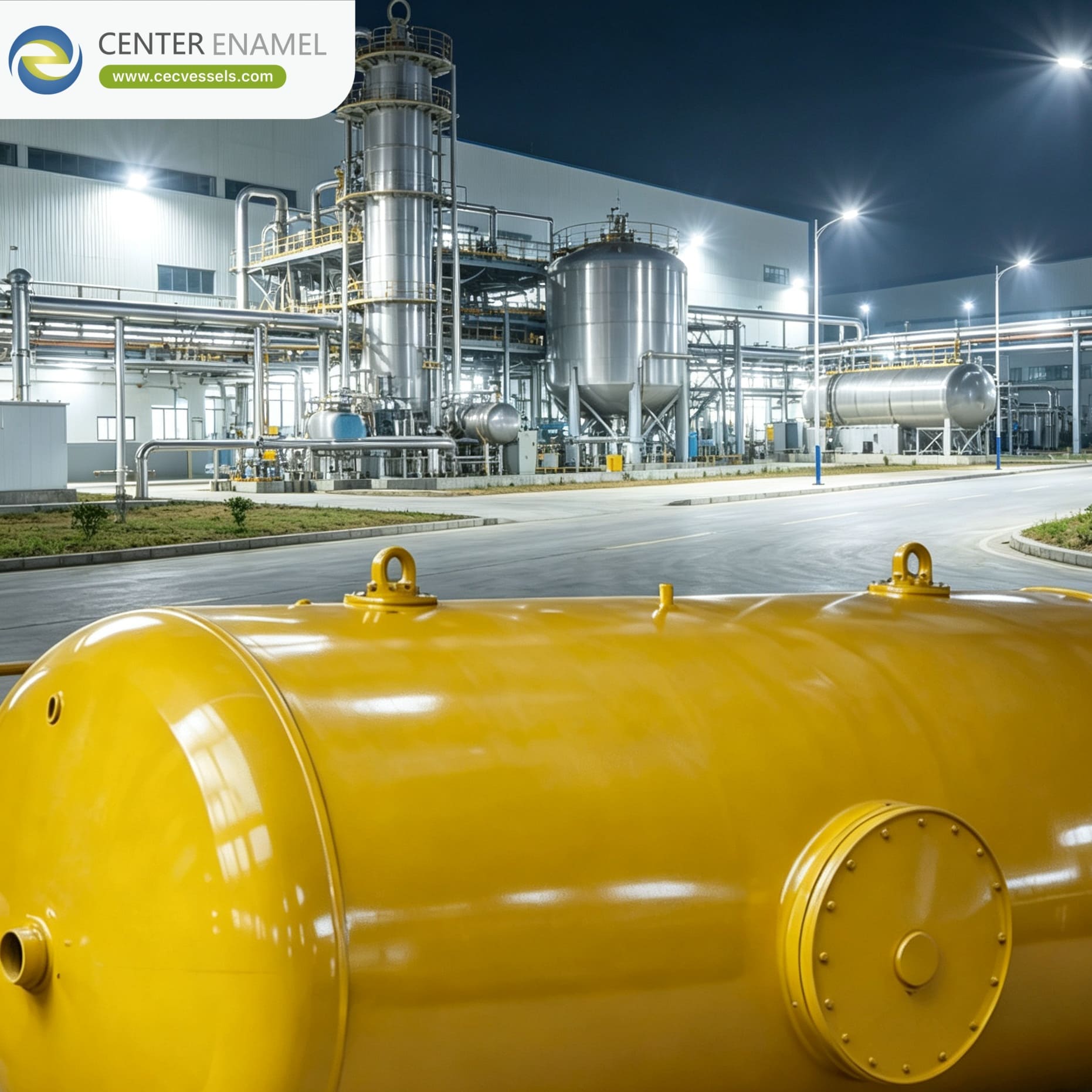

Center Enamel Process Equipment for Gas Processing

Center Enamel provides industrial process equipment for applications involving gas-liquid separation, liquid handling, heat transfer, and related process operations.

For natural gas processing applications, equipment selection can be coordinated with the overall process flow. Separators can be used for gas-liquid separation, while customized vessels and process equipment can support different stages of gas treatment.

For companies developing a cryogenic natural gas plant, cryogenic gas plant, or other types of gas processing unit, understanding the relationship between separation, dehydration, cooling, and fractionation is an important part of process planning.

Building an Efficient Natural Gas Processing System

A natural gas processing plant is more than a single separation vessel. It is an integrated system in which multiple process units work together to convert raw gas into useful products.

The gas plant processcommonly begins with inlet separation, followed by acid gas removal and dehydration. Depending on the project requirements, the treated gas may then enter NGL recovery, cryogenic gas processing, and fractionation units.

A cryo gas plantcan provide an effective route for recovering valuable hydrocarbon components through low-temperature separation, while conventional treatment units prepare the gas for downstream processing.

By matching each gas processing unitwith the composition of the feed gas and the required product specifications, natural gas processing facilities can create multiple useful product streams, including methane-rich gas, NGLs, condensate, and separated hydrocarbon components.
