Core Application Scenarios and Reaction Types

Industry Category	Core Process Characteristics	Typical Application Scenarios	Typical Catalytic Reaction Types	Matching Catalyst Types	Applicable Reactor Types
Petroleum Processing	High temperature, pressure, large-scale continuous production	Crude oil hydrocracking, hydrodesulfurization, naphtha reforming	Catalytic reforming, hydrogenation, dehydrogenation	Pt-Re/Al₂O₃, nickel-based, Cr₂O₃-Al₂O₃	Hydrogenation reactor, reforming reactor, tubular reactor
Petrochemical Industry	Heterogeneous catalytic reactions with high requirements for product selectivity	Ethylene cracking, propylene polymerization, benzene hydrogenation, cooling of catalytic reforming waste gas	Catalytic reforming, hydrogenation, dehydrogenation, polymerization	Pt-Re/Al₂O₃, nickel-based, Cr₂O₃-Al₂O₃	Cracking reactor, polymerization reactor, hydrogenation reactor, tubular reactor
Fine Chemicals	High selectivity requirements, precise synthesis of special intermediates	Synthesis of fine organic chemicals, catalytic oxidation of special intermediates	Chiral catalysis, catalytic oxidation	Supported precious metal catalysts, metal oxide catalysts	Batch reactor, continuous flow tubular reactor, catalytic reactor
Pharmaceutical Industry	Sanitary grade, low flow rate, high product purity	Synthesis of pharmaceutical intermediates, catalytic hydrogenation of pharmaceutical raw materials	Catalytic hydrogenation, enzymatic catalysis	Palladium/platinum-based enzyme catalysts, precious metal catalysts	Sanitary reactor, clean tubular reactor, enzymatic catalytic reactor
Ammonia/Methanol Synthesis	High temperature and high pressure, continuous synthetic reactions	Ammonia synthesis (N₂+H₂→NH₃), methanol synthesis (CO+H₂→CH₃OH)	Ammonia synthesis, methanol synthesis	Iron-based, copper-zinc-aluminum, copper-based catalysts	Ammonia synthesis converter, methanol synthesis reactor, high-pressure tubular reactor
Environmental Protection	Environmental compliance, efficient pollutant conversion, waste resource utilization	Catalytic oxidation of VOCs, flue gas denitrification (SCR), catalytic degradation of industrial wastewater	Catalytic oxidation, selective catalytic reduction denitrification	Pd/Pt-based, V₂O₅-WO₃/TiO₂-based, Mn-Ce-based catalysts	Catalytic oxidation reactor, SCR denitrification reactor, wastewater catalytic reactor
Food Processing	Food-grade sanitary requirements, mild reactions, no impurity residues	Catalytic hydrogenation of edible oil, enzymatic catalysis of food additives	Catalytic hydrogenation, enzymatic catalysis	Food-grade nickel-based catalysts, food-grade enzyme catalysts	Food-grade reactor, sanitary hydrogenation reactor, enzymatic catalytic reactor
Polymer Production	Continuous polymerization, uniform molecular weight of products, high stability requirements for reactions	Synthesis of polyethylene, polypropylene and polyester	Polymerization, continuous polymerization	Ziegler-Natta catalysts, metallocene catalysts	Polymerization reactor, continuous tubular reactor, Polymerization Reactor 1 / Reactor 2
Waste Treatment	Environmental protection, waste resource utilization, harmless treatment	Catalytic oxidation of organic waste gas, hydrotreating of waste oil	Catalytic oxidation, hydrotreating	Precious metal catalysts, metal oxide catalysts	Catalytic oxidation reactor, waste oil hydrogenation reactor, tubular reactor
Alternative Energy	New energy development, green production, clean synthesis	Fischer-Tropsch synthesis (coal-to-liquids), ammonia synthesis (hydrogen energy), biodiesel synthesis	Fischer-Tropsch synthesis, ammonia synthesis, transesterification	Iron-based catalysts, copper-based catalysts, biological enzyme catalysts	Fischer-Tropsch synthesis reactor, ammonia synthesis converter, biodiesel reactor

Tubular Reactor

A tubular reactor is a continuous-flow chemical reactor featuring simple structure and high reaction efficiency. Reactants flow continuously from the inlet and products discharge continuously from the outlet, where chemical reactions take place along the flow direction inside the tubular cavity. Thanks to its high mass and heat transfer efficiency, stable operation and strong customization capability, tubular reactors are widely adopted in various industrial continuous reaction processes, especially for gas-phase reactions, gas-liquid phase reactions and heterogeneous catalytic reactions.

Nomenclature and Classification of Tubular Reactors

Also known as continuous flow tubular reactors, tubular reactors have multiple aliases classified by structural features, reaction types and fluid flow regimes:

Plug Flow Reactor (PFR): The classic type with plug flow inside tubes (no axial backmixing), uniform residence time of reactants and superior reaction efficiency.
Simple Tubular Reactor: Straight tube or coil structure without internal components, suitable for fast homogeneous gas or liquid phase reactions.
Packed Bed Reactor: Tube cavity filled with solid catalysts or reaction media, applicable to heterogeneous catalytic reactions (gas-solid, liquid-solid).
Fixed Bed Reactor: A type of packed bed reactor equipped with a stationary catalyst bed, widely used in catalytic hydrogenation, dehydrogenation and reforming reactions
Trickle Bed Reactor: Liquid reactants flow downward over the catalyst bed in the form of droplets or thin films, suitable for gas-liquid-solid three-phase heterogeneous reactions such as hydrocracking and hydrodesulfurization.
Bubble Column Reactor: Gaseous reactants are introduced as bubbles into liquid reactants inside tubes, applicable to homogeneous or heterogeneous gas-liquid reactions.

Typical Reaction Types for Tubular Reactors

Carbonylation, dehydrogenation, hydrogenation, hydrocracking, hydrotreating, oxidative decomposition, partial oxidation, polymerization, reforming, Fischer-Tropsch synthesis, ammonia synthesis.

Fixed Bed Reactor

Basic Working Principle of Fixed Bed Reactors

Its core working principle relies on heterogeneous catalytic reactions over a stationary catalyst bed: Fluid reactants enter the reactor and are evenly distributed via the feed distribution system, flowing axially or radially through the fixed catalyst bed. Reactant molecules adsorb onto active sites on the catalyst surface to undergo chemical reactions; product molecules desorb from the catalyst surface and flow out of the reactor with the fluid, while the catalyst remains stationary throughout the process.

Characteristics of Fixed Bed Reactors

No axial backmixing: Fluid flows in plug flow with uniform residence time of reactants and high product selectivity, ideal for reactions with side reactions and strict product quality requirements.

High catalytic efficiency: Full contact between reactants and catalyst surface delivers excellent mass and heat transfer efficiency, high catalyst utilization rate and high single-pass conversion rate (≥90% for most reactions).
Stable operation: Stationary catalyst bed and steady fluid flow allow easy control of process parameters (temperature, pressure, flow rate), supporting long-term continuous production for thousands of hours.
Low catalyst loss: Catalysts are fixed inside the reactor and cannot be carried away by fluid, minimizing loss, cutting production costs and preventing product contamination.
Limitations: The catalyst bed is prone to fouling and clogging after long-term operation; catalysts cannot be replaced online and require shutdown for replacement or cleaning; unsuitable for reactions with severe catalyst deactivation.

Material and Corrosion Resistance Parameters

Material Grade	Corrosion Resistance	Applicable Media	Operating Temperature Limit
304/304L Stainless Steel	Resists weak acid, weak alkali and organic solvents	Dilute sulfuric acid (≤5%), dilute hydrochloric acid (≤5%), ethanol, methanol	≤600℃
316/316L Stainless Steel	Resists moderate acid, alkali and chloride ions	Seawater, dilute nitric acid, acetic acid, chloride-containing organic media	≤650℃

Advantages of Fixed Bed Reactor Design & Manufacturing

We provide one-stop customized solutions covering structural design, material selection, manufacturing, on-site installation and commissioning, with core advantages as follows:

Professional structural design: Optimized catalyst bed and feed distribution system to ensure uniform fluid distribution; radial flow bed design adopted for large-diameter reactors to reduce bed pressure drop and boost reaction efficiency.
Precise temperature and pressure control: Independent multi-zone temperature control and multi-point temperature measurement; pressure control accuracy ±0.01 MPa, with over-temperature / over-pressure alarm and interlock protection.
Superior corrosion resistance: High-quality raw materials and advanced welding & heat treatment processes; 100% non-destructive testing for all welds to guarantee structural integrity.
Sanitary grade customization: Standard-compliant sanitary reactors with dead-space-free design for pharmaceutical and food industries.
Comprehensive after-sales service: On-site installation guidance, commissioning and operator training; regular follow-up and maintenance services.

Reactor

Agitator Reactor: usually cylindrical or square, with a stirring device inside, suitable for liquid phase reaction, can provide good mixing effect

Tower Reactor: has a high specific surface area, suitable for gas-liquid or liquid-liquid reaction, often used in absorption, washing and other processes

Fluidized Bed Reactor: solid catalyst flows with gas or liquid in the form of particles to form a fluidized state, with good heat and mass transfer performance

Tubular Reactor: generally long straight tube, reactants flow along the length of the tube, suitable for gas or liquid phase reaction, with high heat and mass transfer efficiency

Fixed Bed Reactor: the reactor is filled with fixed solid catalyst, reactants pass through the catalyst bed, suitable for gas-solid or liquid-solid reaction

Bioreactor: used to provide a suitable environment to support the growth and metabolic activities of microorganisms or cells, often used in biotransformation or fermentation processes.

Reactor

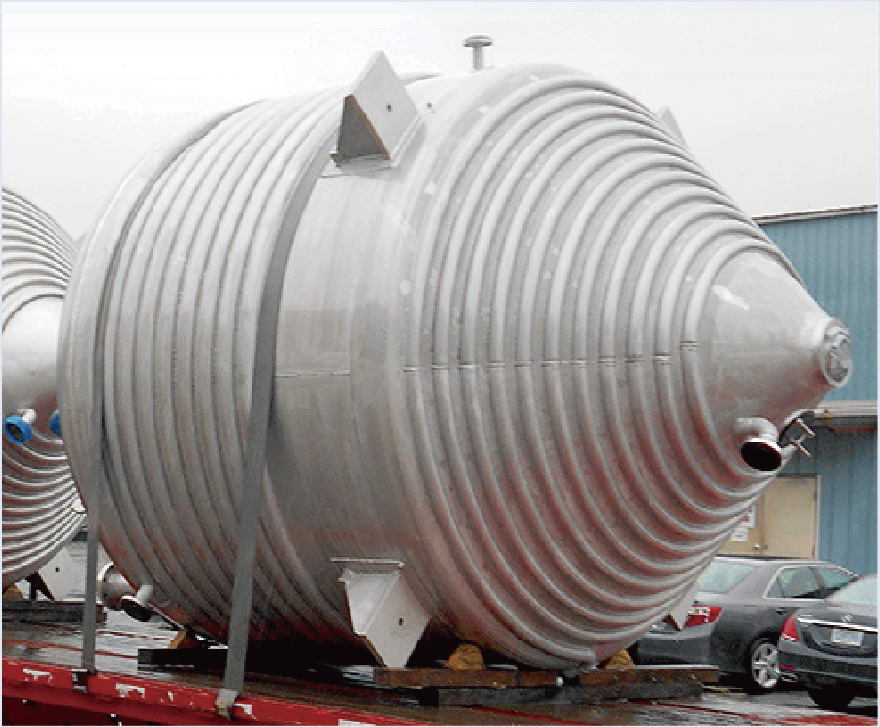

Vertical Reactor: The reactor body is in the shape of an upright cylinder, usually with a flat or dished bottom and a head on the top. The stirring shaft is installed vertically in the center of the reactor body, and the agitator is located at the bottom of the reactor. This structure allows the material to be naturally stratified under the action of gravity, which is conducive to the separation and reaction of materials in different phases. At the same time, the height of the vertical reactor is relatively high, and multiple layers of stirring paddles can be set as needed to meet different stirring requirements.

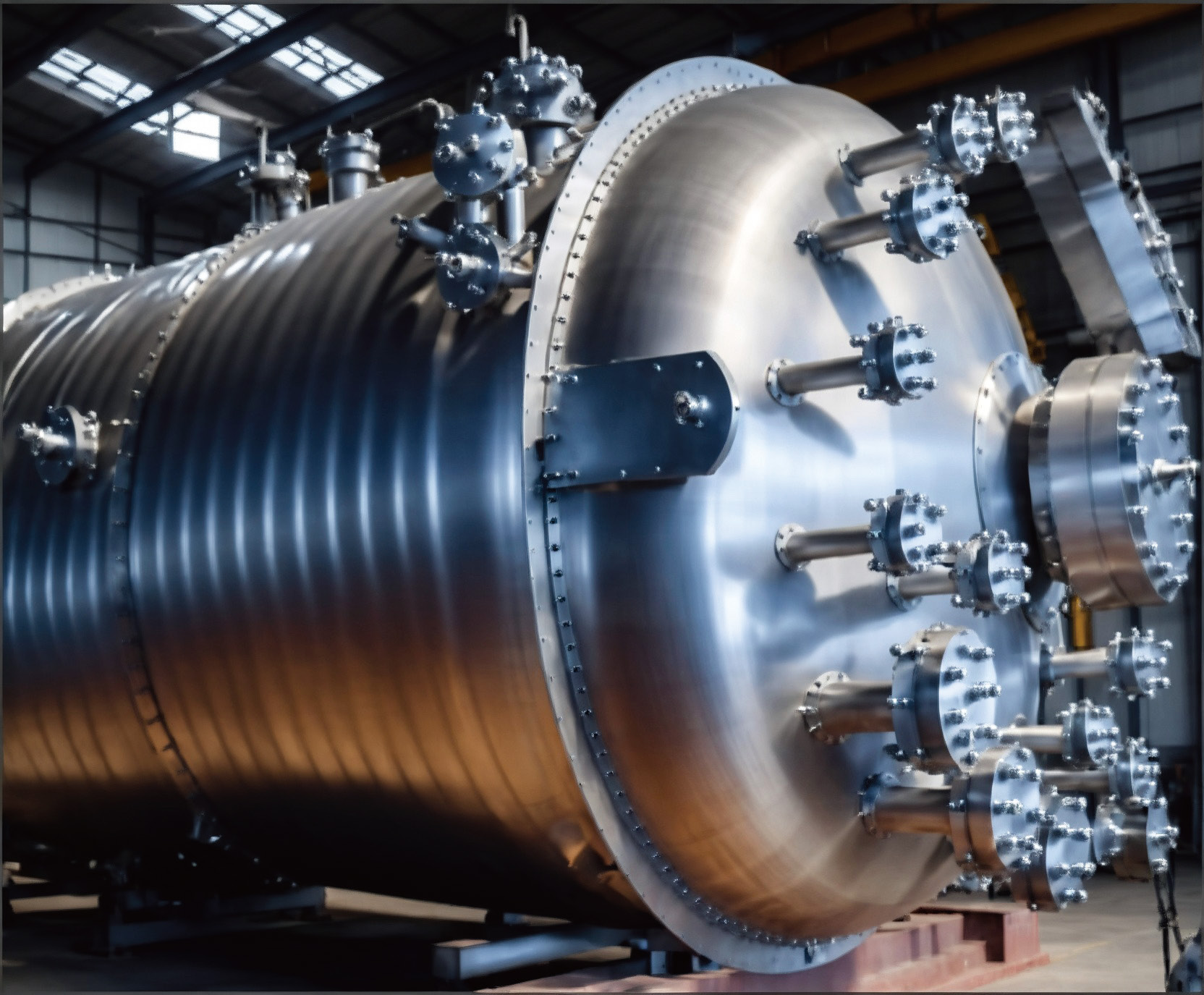

Horizontal Reactor: The reactor body is a horizontally placed cylindrical body, and the two ends are usually elliptical or dished heads. The stirring shaft is installed horizontally on the reactor body, and the agitator is of various forms, such as paddle type, anchor type, etc. The internal space of the horizontal reactor is relatively spacious, and the flow path of the material in the reactor is longer, which is conducive to the full mixing and reaction of the material.

Multifunctional Reactor: Multifunctional reactors are usually equipped with a variety of different functional modules based on the basic reactor structure, such as multiple heating methods (electric heating, steam heating, thermal oil heating, etc.), multiple stirring forms (the agitator can be replaced according to different reaction requirements), precise temperature and pressure control systems, online detection and analysis devices, etc. Its structural design is flexible and can be customized according to specific reaction processes and requirements.
