Project Application: Chemical Industry
Project Location: Hubei, China
Equipment specifications and design parameters:
Equipment | Specifications | unit | quantity | Material | Design temperature | Design pressure |
Resin tank | DN1200*2200*12mm | set | 3 | Q345rR | 160℃ | 0.6MPa |
coalescing oil separator | DN400*1200*6mm | set | 1 | S32168 | 35℃ | 0.6MPa |
Fiber adsorption tank | DN500*1200*6mm | set | 2 | S32168 | 35℃ | 0.6MPa |
Compressed air storage tank | DN1300*4000*8mm | set | 1 | Q345R | normal temperature | 1.0MPA |
Condensate tank | DN1200*3000*6mm | set | 1 | S30408 | normal temperature | Atmospheric pressure |
Steam distribution cylinder | DN200*2000* 6mm | set | 1 | S30408 | 196℃ | 1.2MPa |
Learn More: https://www.cecvessels.com/custom-pressure-vessel-for-china-hubei-chemical-fluid-processing-project.html
Project Application: Seawater desalination
Project Location: Malta
Equipment specifications:
ID1240*1840*8mm, 1.13 m³
ID1200*1665*8mm, 1.16 m³
Storage medium: 98% concentrated sulfuric acid
Design: Vertical layout, designed and manufactured according to EN 13445 standard.
Material: The shell is made of ASTM A516 Gr.70 steel plate with a thickness of ≥8mm (including ≥2.5mm corrosion allowance).
Protection: The outer surface is coated with a C5M grade white epoxy coating.
Operating environment: Semi-marine environment, continuous operation year-round, temperature 5-40°C, humidity up to 100%.
Learn More:https://www.cecvessels.com/seawater-desalination-project.html

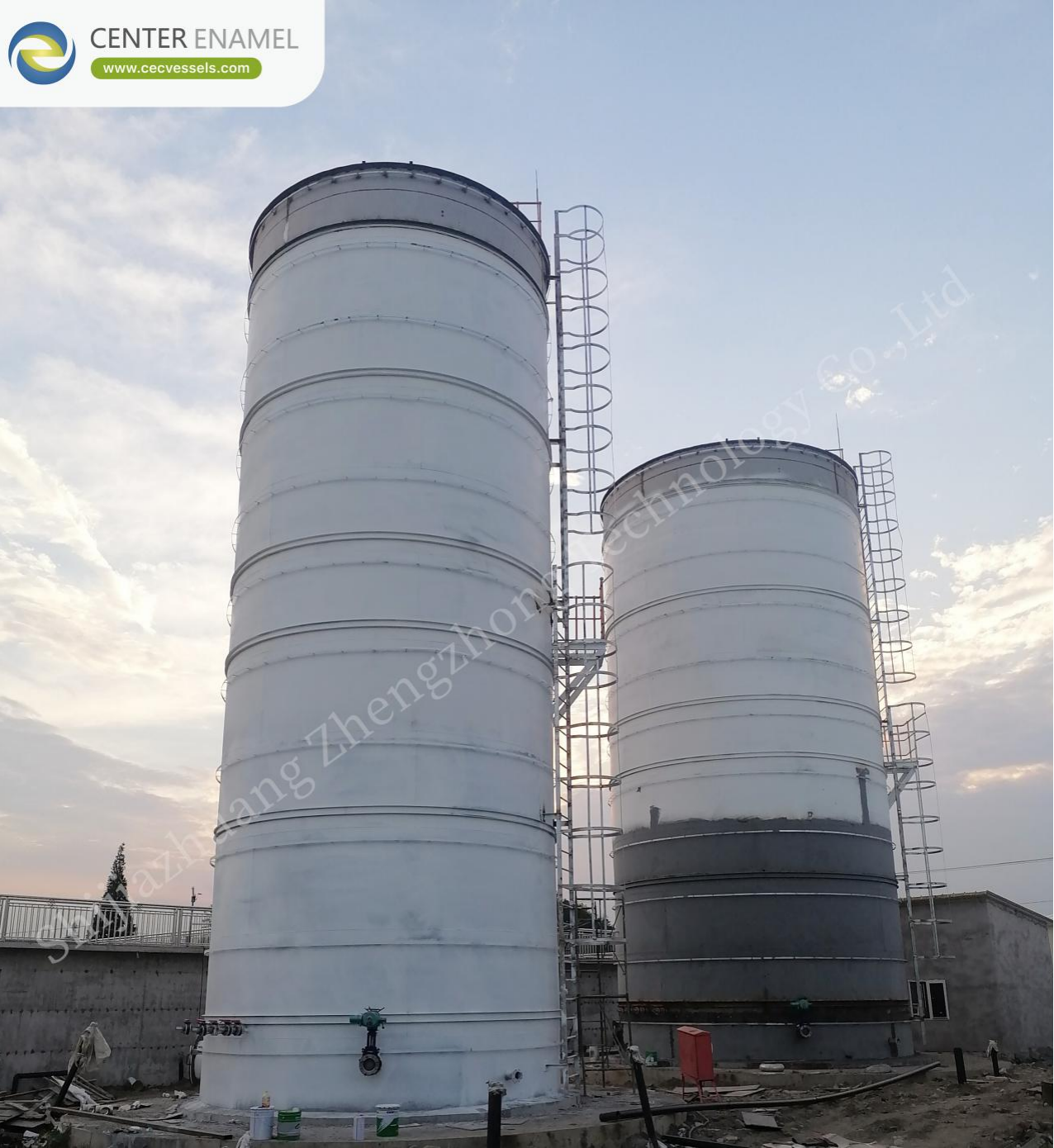

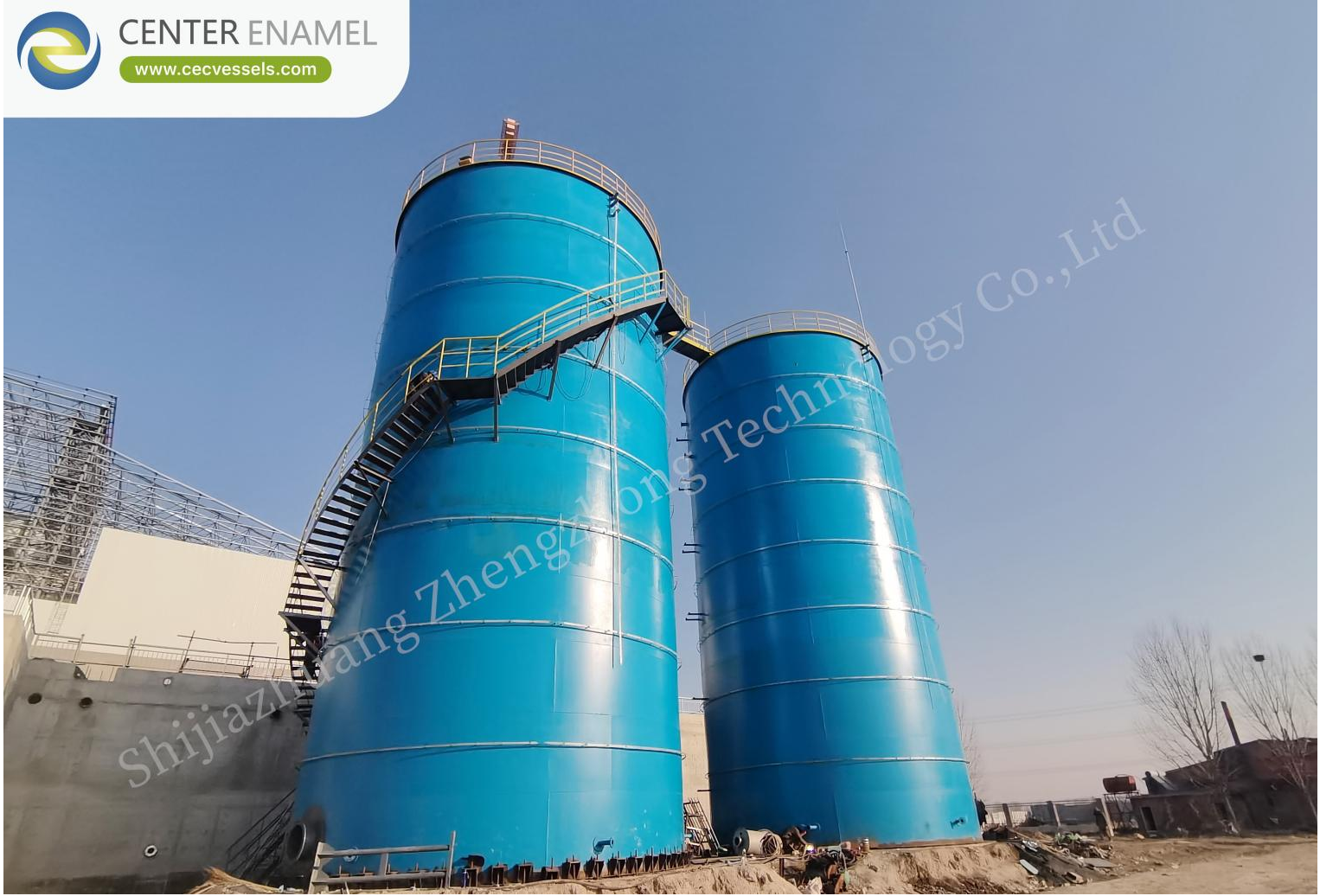

Project Application: Waste-to-Energy Incineration
Project Location: Hebei, China
Equipment specifications: Φ 9.17 × 19.2 meters (h) 2 sets
Equipment function: Wastewater treatment
Storage medium: landfill leachate
Design parameters:
Design Specifications | GB 50341-2003 Code for design of vertical cylindrical welded steel oil tanks GB 50128-2005 Code for construction and acceptance of vertical cylindrical steel welded storage tanks | ||
category | container | Basic wind pressure (N / m2 ） | 600 |
medium | Landfill leachate | Medium characteristics | Flammable, explosive, and mildly toxic |
Material density (kg/ m³ ) | 1000 | Electrode type | According to JB/T4709-2000 |
Operating temperature (°C) | 3 5° | Welding specifications | According to JB/T4709-2000 |
Work stress (MPa) | Atmospheric pressure | weld structure | Unless otherwise specified, full penetration weld structure is adopted. |
Design temperature (°C) | 40° | Unless otherwise specified, the web height of the outer corner weld is indicated. | According to the thinner thickness of the welded parts |
Design pressure (MPa) | Atmospheric pressure | Pipe flange and nozzle welding standards | According to the corresponding flange standards |
Corrosion allowance | 3mm | Tank top load (Kgf/ m² ) | 200 |
Welding joint system | 0.9 | Nondestructive testing | According to the GB 50128-2005 Code for construction and acceptance of vertical cylindrical steel welded storage tanks |
Earthquake fortification intensity (McCarrey) | 7 | Hydraulic test pressure (MPa) | Full water test |
Air tightness test pressure (MPa) | 0.006 | ||
Learn More: https://www.cecvessels.com/carbon-steel-landfill-leachate-storage-treatment-tanks.html
Project Application: Aquaculture wastewater
Project Location: Sichuan, China
Equipment specifications: Φ 6×16.5 m (h) 1 set; Φ 7.6×16.5 m (h) 1 set
Equipment function: Wastewater treatment
Storage medium: Aquaculture wastewater
Learn More: https://www.cecvessels.com/we-solved-it-with-two-vertical-tanks.html

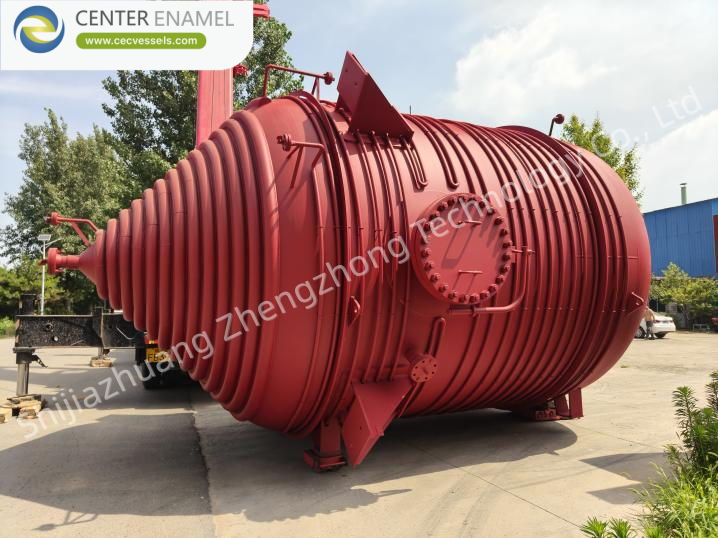

Company name: Triangle LLC
Project background: June 2026,in Tashkent, Uzbekistan
Equipment Name: Polymer Separator
Dimensions: 3.9*4.1*7.5m, nominal volume 45.1 m³
Main Material: SA516Gr70
Design Temperature: 260°C
Design Pressure: 0.98 MPa (low pressure)
Design Codes: ASME Section VIII Division 1
Learn More:https://www.cecvessels.com/polymer-separator-for-natural-gas-project.html
Equipment specifications and design parameters:
Project Location | Design parameters | Equipment Specifications | Device Functions | storage media |
Guangdong, China | 30m³/h | Φ5.8*7.9 meters (h) 1 set | Wastewater treatment | Aquaculture wastewater |
30m³/h | Φ7*6.25 meters (h) 1 set | Wastewater treatment | Aquaculture wastewater | |
Hubei, China | 20m³/h | Φ5.7*7.15 meters (h) 1 set | Wastewater treatment | Aquaculture wastewater |
Jiangsu, China | 35m³/h | Φ6.2*8.3 meters (h) 1 set | Wastewater treatment | Aquaculture wastewater |
35m³/h | Φ7.5*6.55 meters (h) 1 set | Wastewater treatment | Aquaculture wastewater | |
Yunnan, China | 25m³/h | Φ6.4*7.5 meters (h) 1 set | Wastewater treatment | Aquaculture wastewater |
Shandong, China | 35m³/h | Φ6.2*8.3 meters (h) 1 set | Wastewater treatment | Aquaculture wastewater |
35m³/h | Φ7.5*6.55 meters (h) 1 set | Wastewater treatment | Aquaculture wastewater | |
Henan, China | 25m³/h | Φ5.4*7.6 meters (h) 1 set | Wastewater treatment | Aquaculture wastewater |
Shandong, China | 15m³/h | Φ4.9*6.55 meters (h) 1 set | Wastewater treatment | Aquaculture wastewater |
Jiangsu, China | 35m³/h | Φ6.2*8.3 meters (h) 1 set | Wastewater treatment | Aquaculture wastewater |
35m³/h | Φ7.5*6.55 meters (h) 1 set | Wastewater treatment | Aquaculture wastewater | |
Jiangxi, China | 20m³/h | Φ5.7*7.15 meters (h) 1 set | Wastewater treatment | Aquaculture wastewater |
Jiangsu, China | 30m³/h | Φ5.8*7.9 meters (h) 1 set | Wastewater treatment | Aquaculture wastewater |
30m³/h | Φ7*6.25 meters (h) 1 set | Wastewater treatment | Aquaculture wastewater | |
Yunnan, China | 35m³/h | Φ7.5*7.45 meters (h) 1 set | Wastewater treatment | Aquaculture wastewater |
Yunnan, China | 15m³/h | Φ4.9*6.55 meters (h) 1 set | Wastewater treatment | Aquaculture wastewater |
Sichuan , China | 30m³/h | Φ7*7.15 meters (h) 1 set | Wastewater treatment | Aquaculture wastewater |
Guangdong , China | 30m³/h | Φ7*7.15 meters (h) 1 set | Wastewater treatment | Aquaculture wastewater |
Guangdong , China | 25m³/h | Φ5.4*7.6 meters (h) 1 set | Wastewater treatment | Aquaculture wastewater |
25m³/h | Φ6.4*7.5 meters (h) 1 set | Wastewater treatment | Aquaculture wastewater | |
Jiangsu, China | 30m³/h | Φ5.8*7.9 meters (h) 1 set | Wastewater treatment | Aquaculture wastewater |
30m³/h | Φ7*7.15 meters (h) 1 set | Wastewater storage | Aquaculture wastewater |
|
|
