TVR Evaporator for Thermal Vapor Recompression Applications

A TVR Evaporatoris an industrial evaporation system that uses Thermal Vapor Recompression (TVR) to recover and reuse part of the secondary vapor generated during the evaporation process. Instead of allowing all generated vapor to leave the system, a portion is redirected to a thermal vapor recompressor, where it is combined with motive steam and returned to the heating section.

This process allows part of the thermal energy generated during evaporation to be reused within the system. As a result, a TVR Evaporator can improve steam utilization while maintaining continuous liquid concentration.

TVR evaporation technology is suitable for chemical processing, food and beverage production, pharmaceutical manufacturing, wastewater treatment, salt processing, and other industrial applications that require evaporation, concentration, water recovery, or liquid volume reduction.

How Does a TVR Evaporator Work?

The working principle of a TVR Evaporatorcombines conventional thermal evaporation with thermal vapor recompression.

The process liquid first enters the evaporator and receives heat through the heat-transfer system. As the liquid reaches its evaporation temperature, part of the solvent changes into vapor. This generated vapor is commonly referred to as secondary vapor.

Instead of sending all secondary vapor directly to a condenser, a selected portion is directed to the thermal vapor recompressor. Motive steam enters the recompressor through a specially designed nozzle. The high-velocity steam jet entrains the secondary vapor and mixes with it.

The resulting steam mixture has sufficient thermal energy to return to the heating section of the evaporator. It transfers heat to the process liquid, producing additional evaporation.

This creates a continuous thermal energy recovery cycle. The remaining vapor can be condensed or directed to another process stage, while the concentrated liquid is discharged according to the required process configuration.

What Is Thermal Vapor Recompression?

Thermal Vapor Recompressionis a steam-driven vapor recycling technology used to improve the thermal utilization of an evaporation system.

The core component is a thermocompressor or steam ejector. Motive steam passes through a specially designed nozzle and creates a high-velocity steam jet. This steam jet draws secondary vapor into the thermocompressor.

The motive steam and secondary vapor are then mixed. Through the ejector's internal geometry, the combined vapor stream is converted into a usable heating medium for the evaporation process.

Unlike mechanical vapor recompression, which uses a mechanical compressor, TVR uses steam as the driving energy source for vapor recompression.

The performance of a TVR system depends on factors such as motive steam conditions, secondary vapor flow, evaporation temperature, feed characteristics, and thermocompressor design. Therefore, the thermal vapor recompressor should be selected according to the specific evaporation process.

Main Components of a TVR Evaporator

A complete TVR Evaporator Systemconsists of several interconnected components that work together to achieve evaporation, vapor recovery, heat transfer, and concentrate discharge.

Evaporator

The evaporatorprovides the main heat-transfer area where the process liquid receives thermal energy and part of the solvent is converted into vapor.

Different evaporator configurations can be selected according to feed properties, evaporation capacity, viscosity, solids content, and concentration requirements.

Thermal Vapor Recompressor

The thermal vapor recompressoris the defining component of the TVR system. It combines motive steam with selected secondary vapor and returns the resulting heating vapor to the evaporation system.

Its design should correspond to the required evaporation capacity, vapor flow, operating temperature, and available steam conditions.

Vapor-Liquid Separator

The vapor-liquid separatorseparates generated vapor from concentrated liquid. Proper separation helps reduce liquid carryover and provides a suitable vapor stream for the recompression process.

The separator size and internal configuration depend on vapor flow rate, liquid properties, and process requirements.

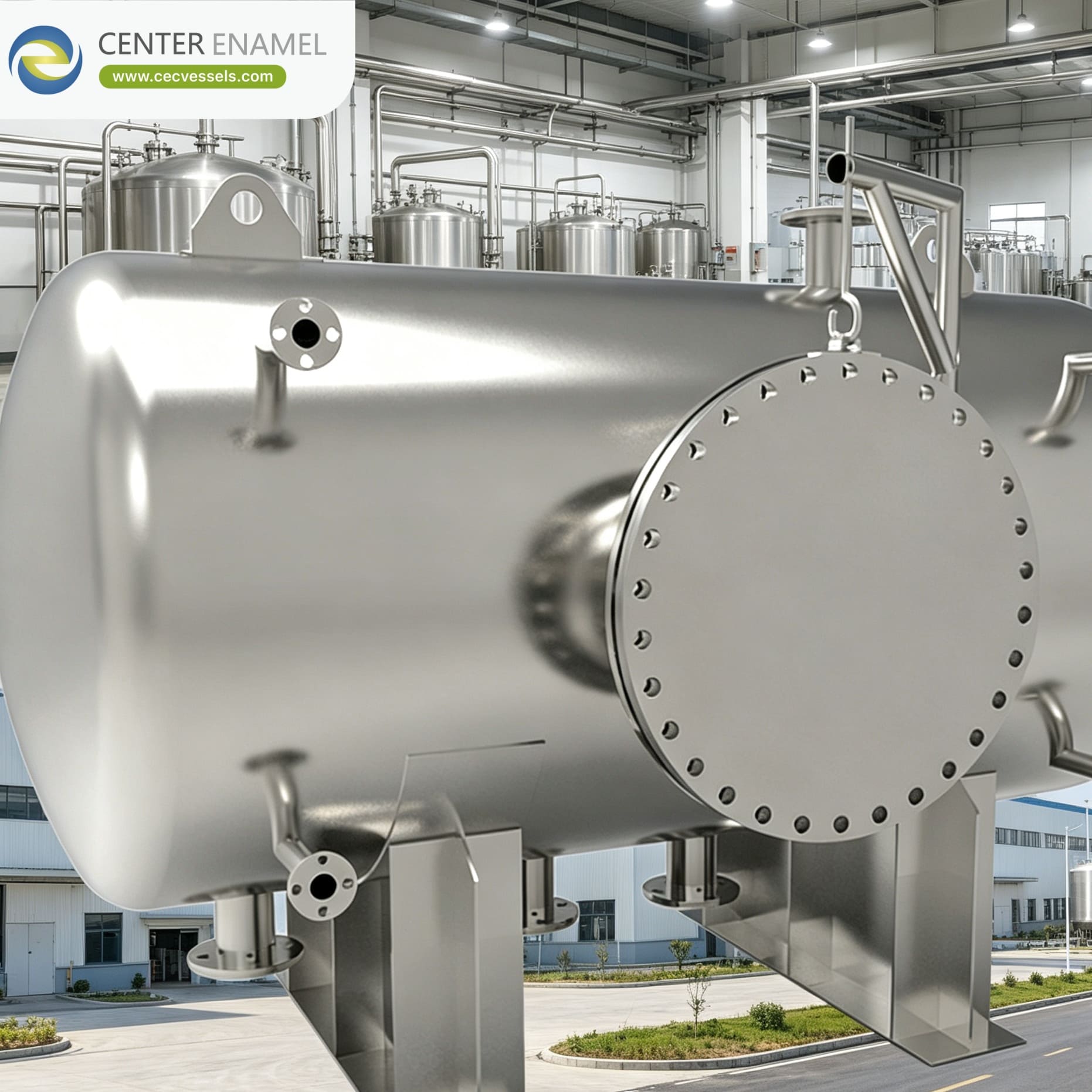

Heat Exchanger

The heat exchangertransfers thermal energy from the heating vapor to the process liquid. Heat-transfer area and configuration are selected according to evaporation duty, temperature conditions, feed properties, and production capacity.

Condenser

The condenserhandles vapor that is not recycled through the TVR system. Condensed liquid can be collected and potentially reused within the plant depending on its quality and process requirements.

Circulation System

Depending on the evaporator configuration, circulation pumps may be used to maintain controlled liquid movement through the heat-transfer system. Pump selection is based on flow rate, liquid properties, temperature, and concentration.

Instrumentation and Control System

Temperature, flow, liquid level, steam conditions, and other process parameters can be monitored through instruments and automated control systems. These controls help maintain stable evaporation conditions during continuous operation.

Steam Utilization in TVR Evaporation

One of the main characteristics of a TVR Evaporatoris the reuse of secondary vapor.

In a conventional single-effect evaporation system, fresh steam supplies heat to the process liquid. After evaporation, the generated vapor may be condensed and its remaining thermal energy is not necessarily reused within the same evaporation cycle.

A TVR system introduces an additional vapor recovery step. Selected secondary vapor is combined with motive steam through the thermal vapor recompressor and returned to the heating section.

This allows part of the thermal energy generated during evaporation to participate in further evaporation. The actual steam economy depends on the feed properties, evaporation temperature, motive steam conditions, vapor flow, heat-transfer performance, and overall system configuration.

TVR Evaporator vs. MVR Evaporator

TVR Evaporatorand MVR Evaporatorboth use vapor recompression to improve thermal utilization, but their energy sources and compression methods are different.

A TVR system uses a steam-driven thermocompressor to entrain and recompress secondary vapor. An MVR system uses a mechanical vapor compressor to increase the temperature and energy level of the secondary vapor before returning it to the heat-transfer section.

The selection between TVR and MVR depends on the available utilities, evaporation capacity, feed characteristics, required concentration, operating conditions, energy objectives, and plant configuration.

TVR technology can be particularly suitable for facilities with an available steam supply and processes where thermal vapor recompression can be effectively integrated into the evaporation system.

Industrial Applications of TVR Evaporators

Chemical Industry

The TVR Evaporator for Chemical Processingcan be used to concentrate chemical solutions, recover water, reduce liquid volume, and prepare concentrated products for subsequent processing.

The system can be configured according to feed composition, evaporation capacity, concentration requirements, material selection, and plant steam conditions.

Food and Beverage Industry

TVR Evaporators for Food Processingcan be applied to the concentration of milk, fruit juices, extracts, sweeteners, and other liquid products.

Stainless steel materials and suitable evaporator configurations can be selected for applications where cleanability, product quality, and controlled temperature operation are important.

Pharmaceutical Manufacturing

In pharmaceutical production, evaporation can be used for solution concentration, solvent removal, and preparation of process streams for downstream operations.

The TVR system can be customized according to product properties, required evaporation capacity, material requirements, and process temperature.

Wastewater Treatment

TVR Evaporators for Wastewater Treatmentcan concentrate wastewater streams containing dissolved solids and other non-volatile components.

The evaporation process can reduce liquid volume while allowing condensed water to be collected for additional treatment or reuse, depending on the overall treatment system.

Salt and Mineral Processing

TVR evaporation can also be integrated into salt and mineral processing systems. Evaporation increases the concentration of dissolved materials and can prepare process streams for crystallization or recovery.

TVR Evaporator Design Considerations

Proper TVR Evaporator Designrequires evaluation of the complete evaporation process rather than selecting individual equipment components separately.

Feed Characteristics

Important feed parameters include flow rate, initial concentration, density, viscosity, solids content, boiling characteristics, thermal sensitivity, and chemical composition.

These factors influence evaporator configuration, heat-transfer area, circulation requirements, material selection, and overall equipment dimensions.

Evaporation Capacity

The required evaporation capacity determines the size of the heat-transfer system, vapor separator, thermal vapor recompressor, circulation equipment, and condensate system.

Motive Steam Conditions

Motive steam is an important energy source for TVR operation. Steam pressure, temperature, flow rate, and quality should be evaluated during system design.

The thermal vapor recompressor should be selected according to the available steam conditions and required vapor recovery rate.

Secondary Vapor Conditions

The flow rate, temperature, composition, and thermal characteristics of secondary vapor influence the TVR process.

The proportion of secondary vapor directed to the thermocompressor should be determined according to the overall heat balance and evaporation requirements.

Final Concentration

The desired concentration of the final product affects evaporation duty, operating temperature, circulation requirements, and equipment configuration.

Material Selection

Equipment materials should be selected according to the process liquid, temperature, chemical composition, corrosion characteristics, and project specifications.

Stainless steel, carbon steel, and other suitable materials can be considered according to individual equipment requirements.

China TVR Evaporator Manufacturer

As a China TVR Evaporator Manufacturer, Center Enamelprovides customized thermal vapor recompression evaporation systems for industrial liquid concentration applications.

The company can develop TVR evaporation systems according to feed characteristics, evaporation capacity, final concentration, available steam conditions, secondary vapor conditions, material requirements, and plant configuration.

A complete equipment package can include the evaporator, heat exchanger, vapor-liquid separator, thermal vapor recompressor, condenser, circulation pump, piping, valves, instruments, and control components.

By considering these components as an integrated system, Center Enamel can develop TVR evaporation equipment that matches the customer's specific process requirements.

TVR Evaporator Manufacturer with Customized Engineering

As a TVR Evaporator Manufacturer, Center Enamel focuses on customized equipment design for different industrial evaporation processes.

The configuration can be adjusted according to:

lEvaporation Capacity

lFeed Flow Rate

lFeed Concentration

lFinal Concentration

lMotive Steam Conditions

lSecondary Vapor Flow

lHeat-Transfer Area

lThermocompressor Configuration

lVapor-Liquid Separator Design

lCondenser Configuration

lMaterial Selection

lCirculation System

lProcess Piping

lInstrumentation and Control

This customized approach allows the TVR system to be integrated into new production facilities as well as existing industrial processing lines.

Center Enamel Manufacturing Capabilities

Center Enamelcombines industrial equipment engineering, fabrication, assembly, inspection, and project support for customized process equipment.

Its product portfolio includes evaporators, reactors, separators, heat exchangers, tanks, and other industrial process equipment. The company serves applications across chemical processing, environmental treatment, food processing, pharmaceutical manufacturing, and other industrial sectors.

For TVR evaporation projects, Center Enamel can coordinate the design of the evaporation body, heat-transfer equipment, vapor separator, thermal vapor recompressor, condenser, circulation system, piping, and instrumentation as a complete process package.

The manufacturing process includes engineering drawing review, material verification, component fabrication, welding, assembly, dimensional inspection, surface treatment, and final quality inspection.

Quality Control for TVR Evaporator Systems

Quality control is incorporated throughout the manufacturing process of a TVR Evaporator.

Raw materials are verified against project specifications before fabrication. Components are manufactured according to approved drawings and technical documentation. Dimensional inspections are performed during fabrication and assembly to verify critical measurements and connection positions.

Welding quality and other inspection requirements can be implemented according to applicable project specifications. Major components such as evaporators, separators, heat exchangers, piping connections, and structural components are inspected before final delivery.

The finished equipment is checked for dimensions, connections, accessories, surface condition, and documentation before shipment.

This structured manufacturing process supports consistent equipment quality and reliable integration into industrial evaporation systems.

Efficient Thermal Vapor Recompression with Center Enamel

A TVR Evaporatorprovides an effective method for recovering and reusing secondary vapor generated during industrial evaporation. By combining secondary vapor with motive steam through a thermal vapor recompressor, the system can return recovered thermal energy to the heating section and improve steam utilization.

The technology is suitable for chemical processing, food and beverage production, pharmaceutical manufacturing, wastewater treatment, salt processing, and other applications requiring continuous liquid concentration.

As a TVR Evaporator Manufacturerand China TVR Evaporator Manufacturer, Center Enamelprovides customized evaporation systems based on feed characteristics, evaporation capacity, steam conditions, final concentration, material requirements, and plant configuration.

From process design and equipment manufacturing to inspection and project support, Center Enamel provides integrated TVR evaporation solutions for industrial customers seeking efficient thermal vapor recompression applications.
