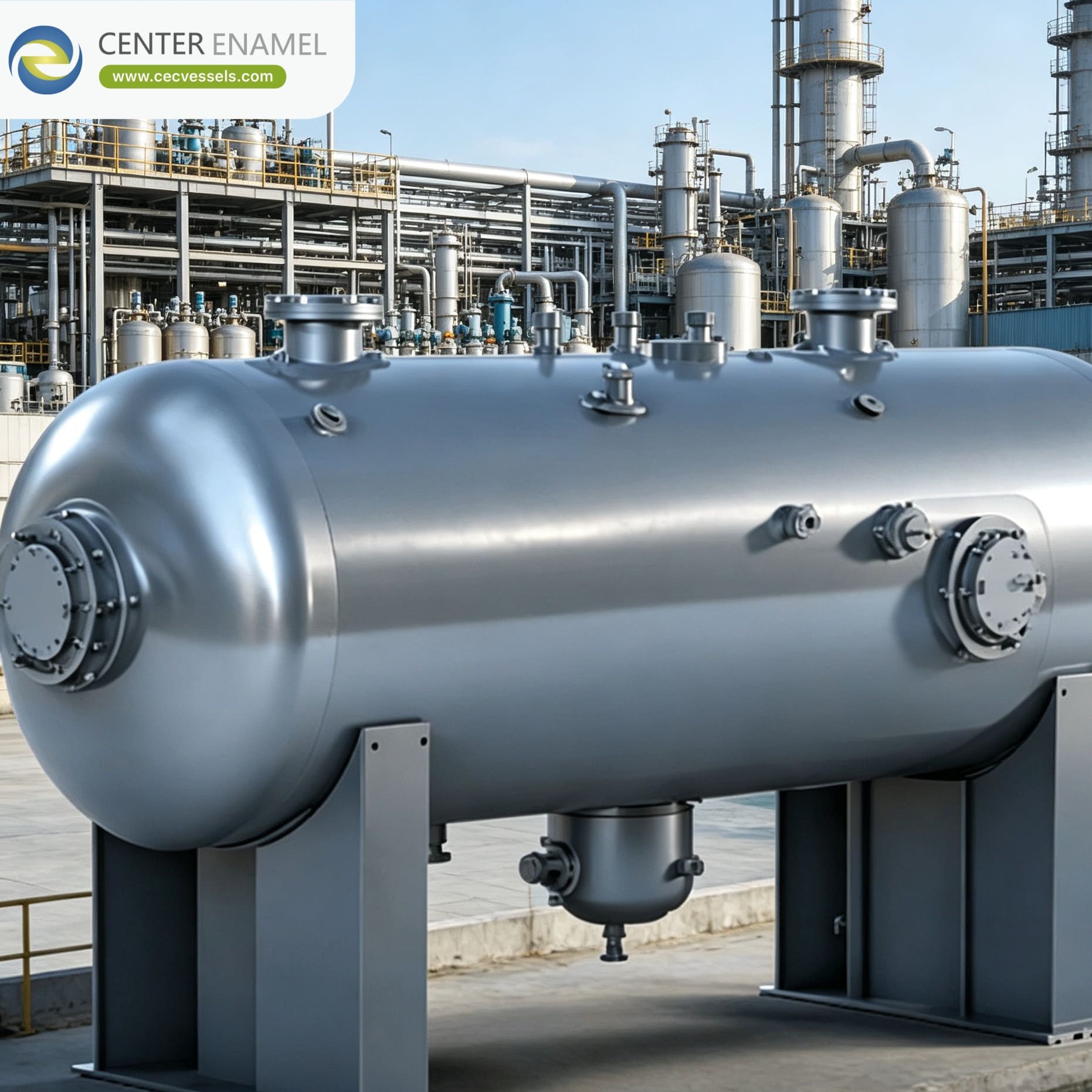

What Is a Solid-Liquid Separation Unit

A solid-liquid separation unit is a process system designed to separate solid particles from a liquid stream. The feed may contain suspended particles, mineral solids, crystals, sludge, or other materials that need to be removed or recovered.

Solid-liquid separation equipmentis widely used in mineral processing, chemical production, wastewater treatment, food processing, pharmaceutical manufacturing, and industrial water treatment. Depending on the characteristics of the feed, the process may use filtration, sedimentation, centrifugation, screening, hydrocyclone separation, or a combination of methods. Multotec describes solid-liquid separation as a process focused on separating solids from liquids and provides equipment such as industrial centrifuges and filtration solutions for these applications.

How Does Solid-Liquid Separation Work?

The basic principle of liquid solid separation technologyis to take advantage of differences between the solid particles and the liquid medium.

These differences may include particle size, density, shape, concentration, and settling characteristics. A separation unit creates suitable conditions for the solids to move away from the liquid phase.

For example, when solid particles are denser than water, gravity can cause them to settle toward the bottom of a vessel. In filtration, a filter medium allows liquid to pass through while retaining solid particles. In centrifugation, rotational motion generates a centrifugal force that accelerates the separation of solids from the liquid.

Hydrocyclones use centrifugal forces and flow patterns to separate particles according to size and density. According to Multotec, larger particles tend to move toward the outer wall and downward, while finer particles and much of the liquid leave through the overflow.

The selected method therefore depends on the physical properties of the feed and the desired characteristics of the separated solid and liquid streams.

Main Types of Solid-Liquid Separation

There are several commonly used methods for separating solids from liquids. Each method uses a different physical principle and can be selected according to the process requirements.

Sedimentation

Sedimentation is one of the simplest forms of solid separation system. It uses gravity to separate solid particles from a liquid.

When a suspension enters a settling vessel, the flow velocity is reduced. Particles with sufficient density gradually move downward and accumulate at the bottom. The clarified liquid remains in the upper section and can be discharged separately.

Settling tanks, clarifiers, and thickeners can use this principle. Sedimentation is particularly useful when the solid particles have sufficient size and density to settle naturally.

The residence time and vessel geometry influence how effectively particles can move through the liquid. Internal structures can also help guide the flow and support the separation process.

Filtration

Filtration is a widely used form of solid-liquid separation equipment. In this process, a liquid-solid mixture passes through a filter medium.

The filter medium contains openings that allow the liquid to pass while retaining particles above a certain size. The retained material forms a filter cake, while the liquid leaving the filter is known as filtrate.

Different filter media can be selected according to particle size, liquid characteristics, flow rate, and the desired separation level.

Multotec notes that filtration can be used to separate insoluble solids from liquids and offers filter cloth in different constructions for specific separation requirements.

Common filtration equipment includes filter presses, vacuum filters, pressure filters, cartridge filters, and other industrial filtration systems.

Centrifugation

Centrifugation uses rotational movement to accelerate solid-liquid separation.

A suspension enters a rotating bowl or chamber. Centrifugal force causes the denser solid particles to move toward the outer region, while the liquid occupies a different area.

Industrial decanter centrifuges can continuously separate solids from liquids. Multotec describes industrial centrifugal decanters as systems in which suspension enters the bowl and solids are conveyed by a rotating scroll, while clarified liquid moves toward the larger-diameter outlet.

Centrifuges are useful when faster separation is required or when particles are too small for simple gravity settling.

Hydrocyclone Separation

A hydrocyclone is a compact solid-liquid separatorthat uses centrifugal effects to classify or separate particles within a liquid medium.

The slurry enters the cylindrical section and begins rotating. Centrifugal force moves larger and denser particles toward the outer wall. These particles travel downward through the conical section and leave through the underflow.

Finer particles remain closer to the central vortex and move upward through the vortex finder before leaving through the overflow.

Hydrocyclones are widely used for classification, dewatering, desliming, densification, and fines recovery in mineral processing. They are also used in manufacturing, food processing, aggregates, and wastewater applications.

Screening

Screening separates solids from liquids according to particle size. A screen contains openings through which liquid and smaller particles can pass, while larger solids are retained.

Screens can be used for coarse solids removal, dewatering, and slurry processing. In a dewatering application, the screen allows a significant portion of the liquid to drain away while retaining the solid material.

Screening can also be combined with other separation technologies to create a multi-stage solid separation system.

What Equipment Is Used for Solid-Liquid Separation?

Different types of solid-liquid separation equipmentcan be integrated into industrial process systems.

Industrial Centrifuge

Industrial centrifuges are designed to separate solids from liquids through centrifugal force. They can be used for continuous or batch processing, depending on the equipment configuration.

Decanter centrifuges are particularly useful for continuous processing. A rotating scroll can transport the separated solids while the clarified liquid is discharged from another section of the bowl. Multotec identifies industrial centrifuges and decanters as important equipment within its solid-liquid separation solutions.

Filter Press

A filter press separates solids from liquid by passing slurry through filter cloths installed between filter plates.

During operation, liquid passes through the filter cloth while solids accumulate between the plates. As the filtration cycle progresses, a solid filter cake develops.

After the filtration stage, the plates can be opened and the accumulated solids discharged. Filter presses are commonly used where a relatively dry solid product is required.

Vacuum Filter

A vacuum filter uses a pressure difference to draw liquid through a filter medium while retaining solids.

The filter medium may be arranged on a rotating drum, disc, or other continuous configuration. As the filter surface moves through the slurry, solids are collected and liquid is removed.

This type of equipment can provide continuous solid-liquid separation for suitable industrial applications.

Thickener

A thickener separates solids from liquids mainly through gravity settling. The solids concentrate toward the lower part of the vessel, while clarified liquid moves toward the upper section.

Thickeners are frequently used in mineral processing and wastewater treatment. They can increase the concentration of solids and recover clarified water for further processing.

Multotec describes thickeners as part of dewatering circuits and notes that they can provide greater retention time and compression compared with hydrocyclone separation.

Hydrocyclone

A hydrocyclone has no moving mechanical parts and generally consists of a cylindrical section, conical section, vortex finder, inlet, overflow, and underflow outlet.

Its compact design makes it useful when particle classification or slurry dewatering needs to be integrated into a process flow.

Solid-Liquid Separation Process Flow

A typical solid separation systemmay contain several stages rather than relying on a single piece of equipment.

The process can begin with screening to remove larger particles. The remaining slurry may then enter a hydrocyclone for particle classification or preliminary dewatering.

After this stage, a thickener may be used to increase the concentration of solids and recover clarified liquid. A filter or centrifuge can then provide additional dewatering.

The final process arrangement depends on the characteristics of the feed and the required outlet conditions.

For example, a mineral processing plant may use hydrocyclones for classification, followed by dewatering equipment to reduce the moisture content of the recovered solids. Multotec's published process flow material shows combinations of cyclones, thickeners, dewatering screens, and water treatment equipment within mineral processing circuits.

This staged approach allows different equipment types to perform specific separation functions.

Factors Affecting Solid-Liquid Separation

Several physical properties influence the selection of liquid solid separation technology.

Particle Size

Particle size has a direct effect on separation behavior. Large particles generally settle or screen more easily, while fine particles may remain suspended in the liquid for longer periods.

Hydrocyclones are often selected when particle classification according to size is required. The separation point, commonly referred to as the cut point, depends on factors such as particle size distribution, solids concentration, flow rate, and cyclone configuration.

Particle Density

Density differences influence gravity and centrifugal separation.

Particles with higher density relative to the liquid generally respond more strongly to gravity and centrifugal forces. This makes density an important consideration when selecting a separator.

Solids Concentration

The amount of solids in the feed can affect the flow behavior and equipment capacity.

A dilute suspension may be suitable for certain clarification processes, while a concentrated slurry may require equipment designed for higher solids loading.

Liquid Viscosity

Liquid viscosity influences particle movement. A more viscous liquid can slow particle settling and affect the required separation time.

For this reason, the viscosity of the feed should be considered when designing or selecting separation equipment.

Moisture Requirement

The desired moisture content of the separated solids is another important consideration.

If the objective is simply to remove large suspended particles, screening or sedimentation may be sufficient. If the process requires a more concentrated or drier solid product, additional filtration or centrifugation may be incorporated.

Applications of Solid-Liquid Separation Units

Solid-liquid separation equipmentis used across a wide range of industrial sectors.

Mineral Processing

Mineral processing is one of the major application areas for solid-liquid separation. Slurries generated during grinding, classification, concentration, and washing contain both water and mineral particles.

Hydrocyclones can classify particles according to size and density, while centrifuges, screens, and other dewatering equipment can separate water from mineral products. Multotec identifies classification, dewatering, densification, desliming, and fines recovery as common hydrocyclone applications.

Chemical Processing

Chemical processes often generate suspensions containing crystals or solid reaction products.

Filtration and centrifugation can separate these solids from the liquid phase. The recovered solids may then be washed, dried, or transferred to another production stage.

Wastewater Treatment

A water solid separatoris commonly used in wastewater treatment to remove suspended solids from water.

Sedimentation tanks, clarifiers, screens, filters, hydrocyclones, and centrifuges can be selected according to the characteristics of the wastewater.

The separated water can proceed to additional treatment, while the concentrated solids can be collected for further handling.

Food Processing

Food and beverage processing can generate liquid streams containing pulp, fibers, crystals, or other suspended solids.

Filtration, centrifugation, and screening can help separate these materials and produce a clarified liquid stream or recover valuable solid components.

Pharmaceutical Processing

Pharmaceutical production may involve crystallization, precipitation, extraction, and other processes that produce solid particles in a liquid medium.

A suitable solid-liquid separatorcan recover the solid product while allowing the liquid phase to move to the next processing stage.

Choosing Solid-Liquid Separation Equipment

Selecting the appropriate solid-liquid separation equipmentbegins with understanding the feed material.

Important information includes the type of solid, particle size distribution, particle density, solids concentration, liquid viscosity, flow rate, and desired separation result.

The required solid moisture level should also be considered. A process focused on clarification may prioritize liquid quality, while a dewatering process may focus on recovering concentrated solids.

Equipment capacity is another consideration. The separator should be sized according to the expected feed flow and solids loading.

For hydrocyclones, Multotec states that selection factors include solids feed flow rate, solids concentration, particle size distribution, required duty, and target cut point.

For filtration and centrifugation, filter area, cycle time, rotational characteristics, solids properties, and liquid flow should also be considered.

Benefits of a Solid Separation System

A properly designed solid separation systemcan support efficient material recovery and process water management.

Separating solids from liquid can help improve the quality of downstream process streams. It can also allow valuable solids to be recovered for further processing.

In water treatment applications, solid removal helps produce a clarified liquid stream that can proceed through subsequent treatment or reuse stages.

In mineral processing, dewatering can reduce the amount of liquid associated with recovered solids and support material handling.

Multotec highlights separation rate, process efficiency, energy efficiency, waste reduction, and water recovery among the objectives associated with its solid-liquid separation solutions.

Solid-Liquid Separation for Efficient Industrial Processing

A solid-liquid separation unitprovides a practical way to separate suspended or dispersed solids from a liquid stream. The appropriate technology can range from simple sedimentation and screening to filtration, centrifugation, hydrocyclone separation, and multi-stage dewatering systems.

The selection of liquid solid separation technologydepends on particle size, density, solids concentration, liquid properties, flow rate, and the desired characteristics of the separated streams.

For applications involving water and suspended solids, a water solid separatorcan provide an important stage in water treatment and process water recovery. For mineral and chemical processes, centrifuges, filters, hydrocyclones, and thickeners can be combined to create an integrated solid separation system.

By matching the separation principle and equipment configuration with the process requirements, industries can establish efficient solid-liquid separation processes for material recovery, liquid clarification, dewatering, and continuous process operation.
